Premium Pallet Jack
Combining solid performance and economic pricing, the Premium Yale Pallet Jack features a quality German design pump for long life and easy field servicing.
Durable, versatile and easy to use the Premium Yale Pallet Jack features an ergonomic design that reduces operator fatigue and downtime.
A 200 degree handle pivot provides exceptional manoeuvrability in compact areas and comes with either nylon or polyurethane wheels and rollers for rolling ease.
The Premium Yale Pallet Jack features a powder coat finish, robotic welds throughout, and grease fittings at all pivot points for easy maintenance.
Frame: Rugged heavy duty frame constructed of one-piece formed Channel steel offering light weight strength.
Forks: Reinforced for added strength with tapered ends for easy pallet entry.
Paint: The Premium Yale Pallet Jack boasts a quality Powder Coat finish.
Hydraulic pump: Quality German design complete with a special lowering valve allowing controlled rate of descent and an overload by-pass valve.
Pump stroke: Features a full 90 degree top to bottom stroke - requires 10 strokes to raise the forks to the maximum lift.
Handle: Featuring a reinforced base, the spring-a-matic handle returns to the upright position automatically. Cushioned handle for maximum operator comfort.
Control handle: The control handle has three position (raise/neutral/ lower) fingertip control. Ergonomically designed and free of pinch points.
Steering: Featuring 200 degree pivot action for greater manoeuvrability with 200mm diameter Nylon or Polyurethane wheels, sealed bearings and “Ball-Thrust” steering.
Load rollers: Features 80mm diameter polyurethane rollers with sealed bearings.
Push rods: The adjustable push rods allow for individual adjustment capability of either fork height.
Hangers: The one piece hangers are constructed of Iron Cast for greater strength and longevity.
Helper rollers: Features helper rollers for easy exit and entry of pallets.
Pivot points: Features grease fittings and bushings at all pivot points for easy maintenance.
Frame Lifetime Warranty: The frame comes with a life time warranty, this excludes any wearing parts like bearings, grease nipples and pins (main structure only).
Pump 5 Year Warranty: The pump comes with a 5 year warranty. Excludes misuse or where evidence shows the Operators Manual instructions weren’t followed or applied correctly.

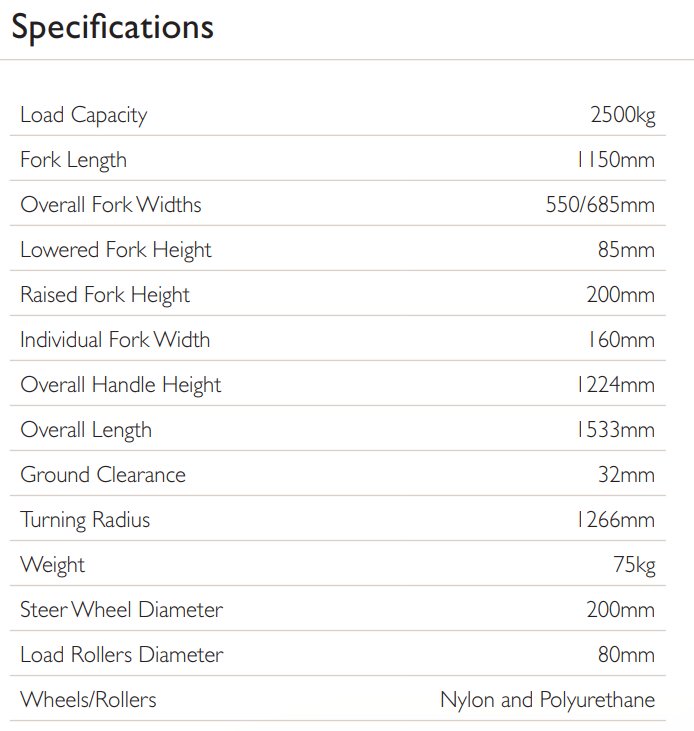

Load Capacity - 2500kg
Fork length - 1150mm
Overall Fork Widths - 550/685mm
Lowered Fork Height - 85mm
Raised Fork Height - 200mm
Individual Fork Width - 160mm
Overall Handle Height - 1224mm
Overall Length - 1533mm
Ground Clearance - 32mm
Turning Radius - 1266mm
Weight - 75kg
Steer Wheel Diameter - 200mm
Load Rollers Diameter - 80mm
Wheels/Rollers - Nylon And Polyurethane
